Funtech - Sparkle Intel Arc B580 Luna OC 12GB GDDR6 (1A1-S00428700G)

Nahajate se: Funtech > Vse kategorije > Računalništvo > Komponente > Grafične kartice > INTEL Arc > INTEL Arc B580

Predstavitev artikla

Dodaj v seznam želja >>

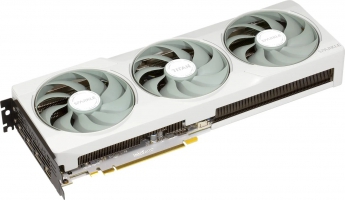

Sparkle Intel Arc B580 Luna OC 12GB GDDR6 (1A1-S00428700G)

Naša cena: 326,59 €

Dodaj v košarico

Že od 11.13 EUR Vaš mesečni obrok

ali

275,91 €

Redna cena:

403,21 €

Spletna cena:

326,59 €

Vaš prihranek:

Popust 19,00% (76,62 €)

Garancija:

2 leti

Dobavljivost:

Dobava 3-10 dni

EAN:

x4711342290788

Naša koda:

VGASR987

Splošni opis:

Model

Intel Arc B580 Graphics

Memory

12GB GDDR6, 192bit, 19Gbps, 2375MHz, 456GB/s

clock Boost

2740MHz

overclock

+70MHz Boost

Cooling

3x Axial-fan (95mm) with 0dB-zero-fan-mode

TDP/TGP

190W (Intel), max. 200W (Sparkle)

AI-Computing power

>233 TOPS

GPU-Computing power

28.06 TFLOPS (FP16), 14.03 TFLOPS (FP32), not available (FP64)

Power connections

1x 8-Pin PCIe

Connectors

1x HDMI 2.1, 1x DisplayPort 2.1 UHBR13.5, 2x DisplayPort 2.1 UHBR10

Interface

PCIe 4.0 x16 (x8)

Special features

AI-acceleration, LED lighting (blue), Backplate, white Build compatible (white colouring), Graphics Cards-Mounting

total height

Triple Slot (2.2 Slots)

Dimensions

315x117x44mm (LxWxH), Weight: 954g

Type

PCIe card (full height)

PCI slot bracket

full height

Chip-data

Chip-Architecture

Xe2-HPG "Battlemage" (from 2024/Q4)

Chip-title

BMG-G21

Chip-Configuration

20Xe / 320EU (2560SP / 160TMU / 80ROP), 20 RT Cores, 18MiB L2 cache

Chip-Manufacturing Process

TSMC 5nm

Chip size

272mm², monolithisch, 19.6 Mrd. Transistoren

Chip-functions

Raytracing

API-support

DirectX 12 Ultimate (12_2) / Vulkan 1.3 / OpenCL 3.0 / OpenGL 4.6 / Shader Model 6.6

encoding

AV1 (8bit / 10bit), H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / HEVC 10bit support), H.264 (YUV 4:2:0 / YUV 4:4:4), VP9

decoding

AV1 (8bit / 10bit), H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4), H.264, VP9 (8bit / 10bit / 12bit), VP8, VC-1, MPEG-2

Tehnične lastnosti:

Processor

Ray accelerators

CUDA

Parallel processing technology support

Not supported

Graphics processor

Arc B580

Maximum resolution

7680 x 4320 pixels

Maximum displays per videocard

Graphics processor family

Intel

Processor frequency

2740 MHz

Memory

Memory bus

192 bit

Discrete graphics card memory

12 GB

Memory bandwidth (max)

456 GB/s

Graphics card memory type

GDDR6

Design

Product colour

White

Number of fans

3 fan(s)

Cooling type

Active

Number of slots

2.2

Power

Minimum system power supply

600 W

Supplementary power connectors

1x 8-pin

Power supply location

Top

Power consumption (typical)

200 W

Weight & dimensions

Length

315 mm

Depth

44 mm

Height

117 mm

System requirements

Windows operating systems supported

Windows 10 , Windows 11

Minimum RAM

8000 MB

Performance

DirectX version

12 Ultimate

TV tuner integrated

OpenCL version

3.0

OpenGL version

4.6

Intel® Xe Matrix Extensions (Intel® XMX) Engines

160

Dual Link DVI

NPU performance up to

233 TOPs

Xe-cores

Packaging data

Package type

Box

Ports & interfaces

HDMI ports quantity

DisplayPort version

2.1

HDMI version

2.1

Interface type

PCI Express x8 4.0

DisplayPorts quantity
